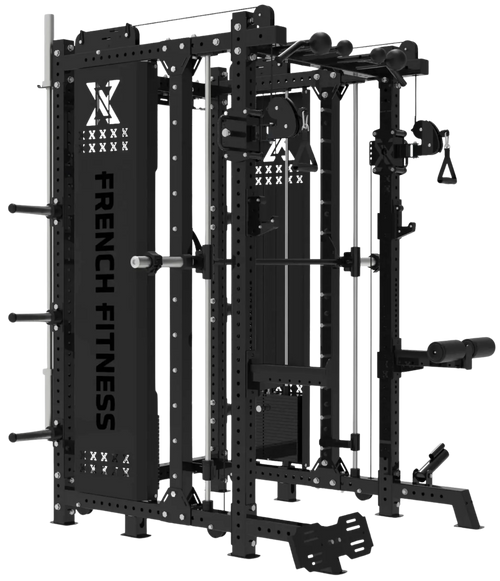

French Fitness FSR90 Functional Trainer Smith & Squat Rack Machine
The French Fitness FSR90 Multi Functional Trainer Smith & Rack System is an all-in-one gym equipment that offers everything you need to perform those powerful strength training workouts. The pull-up bar offers different grip options and allows various chin-up exercises. The press bar with adjustable safety stops allows you to perform strength training workouts. The FF-FSR90 offers a full range of resistance training options for all fitness goals.FSR90 Links & More Information
Click here to compare: FSR80 vs FSR90French Fitness FSR90 Functional Trainer Smith & Squat Rack Machine Owner's Manual (V3)
French Fitness FSR90 Multi Functional Trainer Smith & Rack System Exercises Manual
French Fitness MSC10 MSC20 FSR10 FSR20 FSR50 FSR60 FSR70 FSR80 FSR90 FSR100 SRFT8 Comparison Chart
FSR90's - Packaging
HD (High Definition) Images
French Fitness FSR90 Functional Trainer Smith & Squat Rack Machine - High Resolution Stock PhotosFrench Fitness FSR90 Functional Trainer Smith & Squat Rack Machine - Actual Machine Photos
French Fitness FSR90 Functional Trainer Smith & Squat Rack Machine - Tube Dimension & Steel Thickness
Features
- Thick steel barbell hooks with quick and easy height adjustment
- Chrome/stainless steel used for most contact points (more scratches-resistant)
- Adjustable/Removable Dip Handles
- Thick steel barbell safety hooks with quick and easy height adjustment
- Heavy duty cables and pulley
- Cable Tensile Strength: 1764 lbs braking force (800 kg)
- Extreme core trainer accessory
- Multi-grip chin up bar with comfortable knurling
- Quick and easy pop pin functional adjustment
- Thick steel support plates
- Weight plate storage
- Storage holder Olympic barbell
- Smith Machine
- Squat Rack
- Functional Trainer
- Landmine
- Dip Bars
- Pull Up Bar
- Lat Pulldown
- Jammer Arm
- Leg Press
- Bench (Optional)
- Preacher Curl (Optional on Bench Attachment)
- Leg Extension / Leg Curl (Optional on Bench Attachment)
The Ultimate ALL-IN-ONE Machine:
Tech Specs
- Jammer Arms (Thickness): 2" x 2"
- Frame (Thickness) : 2" x 2.75"
- Cable Columns (Thickness): 2" x 2"
- Selectorized Pin Diameter: 0.394" (10 mm)
- Max Load (J Hooks): 550 lbs
- Max Load (Bar Catches): 660 lbs
- Max Load (Smith Bar): 600 lbs
- Max Load (Plate Storage): 600 lbs
- Max Load (Pull Up Bar): 1100 lbs
- Weight: 992 lbs (450 kgs)
- (2) 220 lb weight stacks
- 2:1 Ratio
- Weight Stack Increments: 11 lbs (20) 11 lb Plates per side (Feels like 5.5 lb increments due to 2:1 ratio)
- Cables extends 62"
- Width (Inner Part of Cage): 48"
- Width (Outer Part of Cage): 52"
NOTE: Most Olympic bars will not fit. The FSR90 / FSR80 Chrome Olympic Bar (Optional) will fit. - Dimensions: 87 3/8"h x 88 1/8"W x 65"D (65" Depth is w/Bar Catches connected)
- Dimensions w/Jammer Arms Fully Extended" 101.5" (Jammer Arms extend 56.5" from Cable Columns)
- Bushing Type: Weights have Plastic / Nylon Bushings. Bronze bushings for the rest of the machine
Smith Bar Specifications
- Smith Bearing Type: Linear Ball Bearings
- Straight up and down movement
- Ultra smooth smith machine movement and solid steel tubing
- Adjustable safety catches for Smith Machine exercises
- 88 1/8" Olympic Smith Bar (Weighs 45 lbs)
- Distance from the bottom of the smith bar to the floor when the smith bar is touching the top bumpers: 74"
- Distance from the bottom of the smith bar to the floor when the smith bar is resting on the top hook: 66.77"
- Distance from the bottom of the smith bar to the floor when the smith bar is resting on the bottom bumpers: 16"
- Distance from the bottom of the smith bar to the floor when the smith bar is resting on the bottom hook:17.56"
Accessories Included
- (1) Band Pegs (Set)
- (2) Stirrup Handles (Set)
- (3) Pins (7)
- (4) Carabiners (4)
- (5) Extension Chains (Set)
- (6) Spring Collars (6)
- (7) Jaw Lock Collars (Set)
- (8) Safety Bar Catches (Set)
- (9) Adjustable Dual Dip Bars (Set)
- (10) Lat Pull Knee Cushion w/Right J Hook
- (11) Left J Hook
- (12) Right J Hook
- (13) Landmine Attachment
- (14) Straight Bar
- (15) Lat Bar
- (16) Dual Hook Revolving Straight Bar
- (17) Dual Hook Jammer Arm Connector
- (18) Vertical Leg Press Plate (Weight: 17 lbs)
- (19) Platform
- (20) Jammer Arms (Set)
- (21) Jammer Arm Grip Handles (Set)
- (22) Olympic Bar Holder
Accessory Features
- J Hooks (Extends 4.5" From Cable Columns)
- Bar Catches (Extends 16" From Cable Columns - Included in the Depth measurement of 65)
- Lat Pull Knee Cushion (latches on to support you at the knees for lat pull downs)
- Jammer Arms (They are used for iso lateral seated, standing and floor based exercises including Chest, Shoulder, and Seated / Standing Rows. They can also be used in conjunction with the included straight bar for leg presses, squats, deadlifts, shoulder shrugs, and more. They allow more explosive movements with greater stability and control than free weights. They connect to the cable columns on the front of the FSR machine)
- #18 Platform (Allows for Leverage Squats and Calf Raises. Also Shoulder & Push Presses with Jammer Arms)
Warranty & Compliance
- 10 Years Parts + 1 Year On-Site Labor (Light Commercial)
- 1-Year Limited (Accessories)
-
California Residents see Prop 65 WARNING
